5100058916

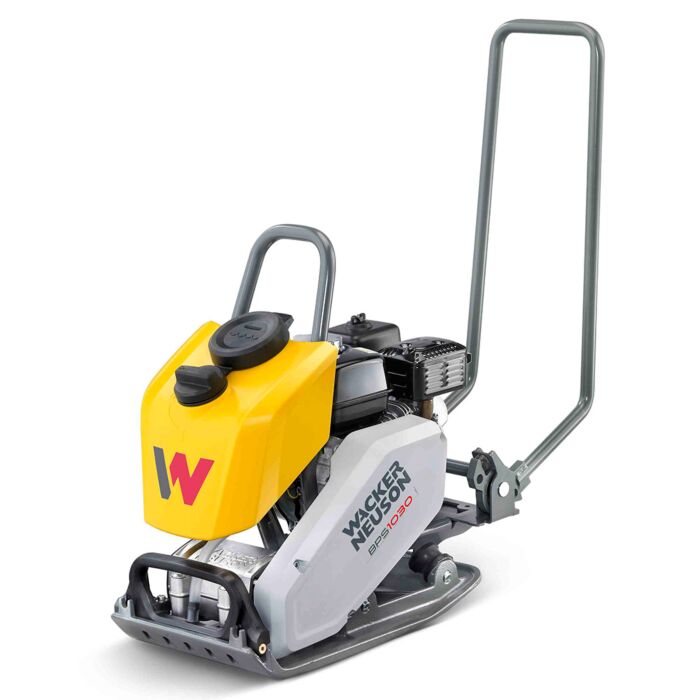

Wacker Neuson BPS1030AW Plate 300mm/12 Inch With Water Kit (Honda Engine)
Out of stock
£1,158.00 £965.00
Product Information
Single direction Wacker Plate with Water kit
The BPS series is characterized by its excellent driving characteristics. Moving and turning these vibratory plates on soil and fresh asphalt is extremely comfortable and leaves no marks. Clean terminations at curbs are also easily made due to the angular side profile of the base plate. The guide handle responds clearly to steering movements and yet achieves low hand-arm vibrations of less than 5 m/s², enabling long and comfortable working.
- Excellent driving characteristics: Whether on asphalt or ground - the BPS maneuvers effortlessly and delivers flawless surfaces.
- Easy transport: A large crane eye and wide, ergonomically designed carrying handles make moving and loading the machine easy and comfortable.
- Maintenance-free: The BPS series is equipped with an extremely robust V-belt and has bearings with lifetime lubrication. This makes it virtually maintenance-free.
- Accessories: Wheel set and paving math complete the application possibilities of the BPS.
Specification
| SKU: | 5100058916 |
|---|---|
| Barcode | 5061043461352 |
| Plate Direction | Single Direction |
| Brand | Wacker Neuson |
| Model | BPS1030Aw |
| Weight | 56.000000 |
| Width | 320.0 mm |
| Height | 663.0 mm |
| Centrifugal Force | 10 kN |
| Area Capacity | 500.0 m2/h |
| Forward Running | 26.0 m/min |
| Gradeability | 36.4 % |
| Vibrations (Hz) | 98.0 Hz |
| Length Baseplate | 599.0 mm |
| Width Baseplate | 320.0 mm |
| Height Cover frame | 663.0 mm |
| Thickness Baseplate | 5.0 mm |
| Operating Weight | 56.0 kg |
| Ground Clearance | 663.0 mm |
| Effective Power | 2.6 KW |
| Normal Engine Speed | 3,600.0 1/min |
| HAV Summation (Average Value) | 4.6 m/s2 |
| HAV Summation (Standard) | EN 500-4 |
